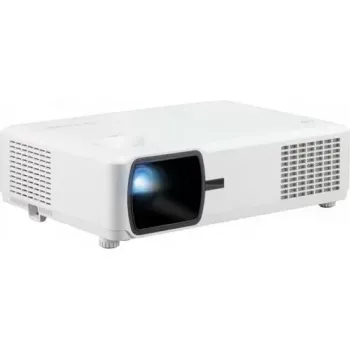

ViewSonic LS600W DLP Projectorref

ViewSonic LS600W DLP Projector

General Specifications:

• Model: ViewSonic LS600W
• Projection Technology: DLP (Digital Light Processing)
• Light Source: LED (RGB)
• Brightness: 3,000 LED Lumens
• Resolution: WXGA (1280 x 800)
• Contrast Ratio: 3,000,000:1
• Aspect Ratio: 16:10 (native), supports 16:9, 4:3

Light Source:

• Type: LED (RGB)
• Lifespan: Up to 30,000 hours (Normal mode)

Projection Details:

• Throw Ratio: 1.55 - 1.70
• Zoom: 1.2x Optical Zoom
• Keystone Correction:
  • Vertical: ±40 degrees
• Screen Size: 30 inches to 300 inches (diagonal)
• Projection Distance: 1m - 7.2m (varies by screen size)

Connectivity:

• Inputs:
  • 2 x HDMI 1.4 (HDCP 1.4)
  • 1 x VGA (D-Sub 15-pin)
  • 1 x Composite Video (RCA)
  • 1 x Audio In (3.5mm)
  • 1 x USB Type-A (5V/1.5A for power)
• Outputs:
  • 1 x Audio Out (3.5mm)
  • 1 x VGA (D-Sub 15-pin, Monitor Out)
• Control Ports:
  • 1 x RS232
  • 1 x RJ45 (LAN Control)

Audio:

• Built-in Speaker: 10W (Mono)

Power:

• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption:
  • Typical: 180W
  • Standby: <0.5W

Dimensions and Weight:

• Dimensions (W x H x D): 293 x 115 x 232 mm (11.5 x 4.5 x 9.1 inches)
• Weight: 2.4 kg (5.3 lbs)
