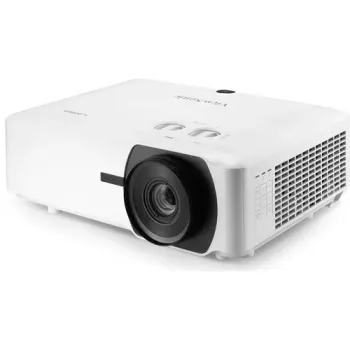

ViewSonic LS750WU DLP Projector

General Specifications:

• Model: ViewSonic LS750WU
• Technology: DLP (Digital Light Processing)
• Light Source: Laser Phosphor
• Brightness: 5,000 ANSI Lumens
• Resolution: WUXGA (1920 x 1200)
• Aspect Ratio: 16:10 (native), supports 4:3, 16:9
• Contrast Ratio: 3,000,000:1 (Dynamic)

Light Source:

• Type: Laser Phosphor
• Lifespan: Up to 20,000 hours (Normal mode)

Projection Details:

• Throw Ratio: 1.36 - 2.18
• Optical Zoom: 1.6x
• Lens Shift: Vertical (+/- 25%)
• Keystone Correction: Vertical and Horizontal (+/- 30 degrees)
• Screen Size: 30 inches to 300 inches (diagonal)

Audio:

• Built-in Speaker: 10W (Mono)

Connectivity:

• Inputs:
  • 2 x HDMI 2.0 (HDCP 2.2)
  • 1 x VGA (15-pin D-Sub)
  • 1 x 3.5mm Audio In
  • 1 x USB Type-A (Power 5V/1.5A)
• Outputs:
  • 1 x 3.5mm Audio Out
  • 1 x VGA (15-pin D-Sub)
• Control Ports:
  • 1 x RS232 (DB-9)
  • 1 x RJ45 (LAN Control)
  • 1 x 12V Trigger

Power:

• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption:
  • Typical: 370W
  • Standby: <0.5W

Dimensions and Weight:

• Dimensions (W x H x D): 405 x 136 x 329 mm (15.9 x 5.35 x 12.95 inches)
• Weight: 6.6 kg (14.55 lbs)
